Laser resistor trimming is achieved by positioning a very thin laser beam on a thin-film or thick-film resistor. The beam cuts the resistor according to a computer-predetermined program, thus trimming the resistance value by changing the cross-sectional area of the resistor. The resistance value is measured in real time through the high-speed measurement system while the laser is cutting the resistance, so that it is constantly approaching the target resistance value. When the resistance reaches the target resistance value, the laser beam is turned off to realize precise trimming of the resistance. The laser trimming system has a variety of trimming functions. It can trim thick or thin film resistor networks, capacitor networks, ceramic-based thin film integrated components, and realize function trimming of hybrid integrated circuits.

Show All

System Features

Self-developed PMU measurement system, resistance measurement accuracy up to ±0.05%

The self-developed resistance adjustment software system supports a variety of different types of resistance adjustment knife

The equipment has powerful functions and supports parameter adjustment such as resistance, AC/DC voltage and current

The equipment is stable and reliable, and the adjusted product parameter values are highly reliable and will not drift

Low operation and maintenance costs, high overall efficiency, low energy consumption, with built-in protection functions

The CNC programming function of the equipment can quickly realize user customization requirements
System Construction

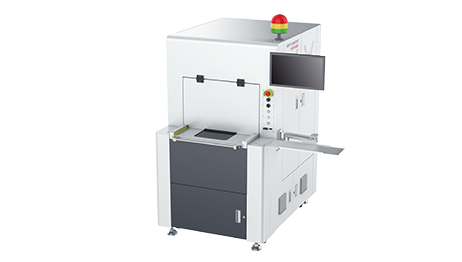

The equipment is composed of optical system, laser beam positioning system, visual positioning system, multi-axis motion system, and measuring system. It is suitable for the precise adjustment of various specifications of thick, thin film and functional circuits. The whole machine has a modular design and a clear structure.
System Parameters
Market and Industry Applications

Chip resistor trimming (01005, 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512)

Thick film circuits (automotive electronics, sensors, industrial electronics, communication electronics, instrument and meters, heating tubes, high-frequency and high-power microwave circuits, and other high-end applications)

Circuit function trimming (adjust output voltage, current and other circuit function signals)

Thin film circuits, thin film resistors
